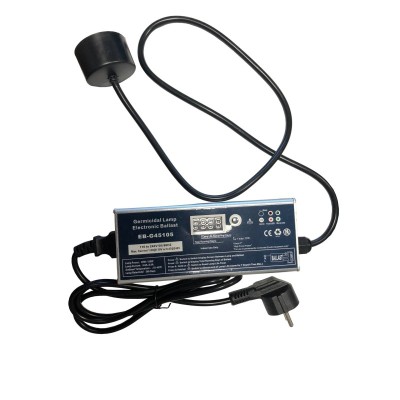

55W ballast igniter with timer and programmable function
zoom_out_map
chevron_left chevron_right

55W ballast igniter with timer and programmable function

Igniter for 30 to 120 Watt UV lamps for G5 connection, 2+2 pins.
Visual and audible alarm to signal faults - Schuko socket.
CE.
EB-G45105. Press “S” to switch to the screen between the lamp and the ballast Press “S” to switch to the screen showing the total days of ballast operation Press and hold “S” to reset the lamp life timer Press and hold “S” to postpone the lamp alarm timer for another 7 days. (can be done up to 4 times)

Igniter for 30 to 120 Watt UV lamps for G5 connection, 2+2 pins.
Visual and audible alarm to signal faults - Schuko socket.
CE.
EB-G45105. Press “S” to switch to the screen between the lamp and the ballast Press “S” to switch to the screen showing the total days of ballast operation Press and hold “S” to reset the lamp life timer Press and hold “S” to postpone the lamp alarm timer for another 7 days. (can be done up to 4 times)

UVABLS30120W
8055715662601
Power supply
110 to 240 V AC 50-60 Hz
Code
UVABLS30120W
Compliance
CE
Connection
G5 - 2+2 pin
Lifetime
365 days
Lamp power
30 W - 120 W
Operating temperature
15-40°C
