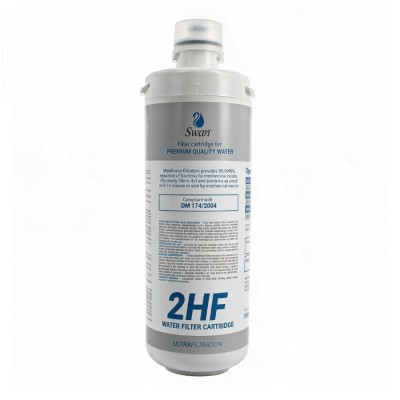

Swan 2HF filter

Swan 2HF Bayonet Filter for Drinking Water

The Swan 2HF is a bayonet filter cartridge designed for the advanced filtration of drinking water in domestic and professional water treatment systems.

The Swan 2HF is the Swan-branded equivalent of the Water Pro HF03 and features triple filtration technology, combining a silver-treated carbon block, a pleated multilayer membrane and a 0.15 µm hollow fibre ultrafiltration membrane.

The combination of these technologies allows the filter to address both the organoleptic quality of the water and mechanical and microbiological filtration, making it particularly suitable for systems requiring a higher level of filtration.

The Swan 2HF has a filtration capacity of up to 4,000 litres and a flow rate of 3 litres/min, making it suitable for both domestic and professional applications.

Triple Filtration Technology

The Swan 2HF combines three filtration stages:

1. Silver-Treated Carbon Block
The carbon block helps reduce chlorine, unpleasant tastes and odours, turbidity and particles present in the water. Silver-ion treatment also provides bacteriostatic properties to the filter media.

2. Pleated Multilayer Membrane
The pleated membrane increases the available filtration surface and contributes to the retention of particles and impurities present in the incoming water.

3. 0.15 µm Hollow Fibre Membrane
The hollow fibre membrane provides the finest filtration stage in the system, with a filtration rating of 0.15 µm.

The combination of these three stages provides high-efficiency mechanical and bacteriostatic filtration, with a declared bacterial reduction of up to 99%.

Up to 99% Bacterial Reduction

The 0.15 µm hollow fibre membrane, combined with the silver-treated carbon block, allows the Swan 2HF to provide advanced filtration with up to 99% bacterial reduction, according to the performance specifications of the equivalent Water Pro HF03 model.

The system also helps reduce chlorine, turbidity, suspended particles and certain heavy metals, contributing to improved water quality.

Filtration Capacity up to 4,000 Litres

The Swan 2HF has a filtration capacity of up to 4,000 litres, with a flow rate of 3 litres/min.

Actual filter life may vary depending on the quality of the incoming water, operating conditions, flow rate and system configuration.

Bayonet Filter for Water Treatment Systems

The Swan 2HF features a bayonet connection compatible with Everpure-type filter heads, allowing quick and easy cartridge replacement on compatible systems.

Before purchasing, it is recommended to check the compatibility of the existing filter head and water treatment system.

Applications

The Swan 2HF is suitable for:

• microfiltration systems
• water coolers
• water dispensers
• domestic water treatment systems
• professional water filtration systems
• reverse osmosis systems
• bars, restaurants and Ho.Re.Ca. businesses
• drinking water dispensing systems

The filter is intended for use with potable water and must be installed in a system compatible with its technical specifications.

Swan 2HF and Water Pro HF03

The Swan 2HF is the Swan-branded equivalent of the Water Pro HF03.

Both models feature a triple filtration configuration consisting of a silver-treated carbon block, pleated membrane and 0.15 µm hollow fibre membrane. The declared capacity is 4,000 litres, with a flow rate of 3 litres/min.

This configuration makes the filter particularly suitable for systems requiring more comprehensive filtration than conventional carbon block filters.

Why Choose the Swan 2HF?

The Swan 2HF is designed for applications requiring a bayonet filter with advanced filtration technology in a compact format.

Key benefits include:

• 4,000-litre filtration capacity
• fine filtration down to 0.15 µm
• triple filtration technology
• silver-treated carbon block
• pleated multilayer membrane
• hollow fibre ultrafiltration membrane
• up to 99% bacterial reduction
• reduction of chlorine, turbidity and suspended particles
• flow rate of up to 3 litres/min
• bayonet connection
• compatibility with Everpure-type filter heads
• ideal for water coolers, dispensers and reverse osmosis systems

The Swan 2HF provides a comprehensive solution for advanced drinking water filtration, suitable for both domestic and professional applications.
