Swn 4mf-r filter

Swan 4MF-R bayonet water filter, equivalent to the Water Pro ZS11, featuring strong gel-type cation exchange resins for reducing total water hardness and preventing limescale. It provides a flow rate of 1.15 litres/min and a capacity ranging from 185 to 530 litres, depending on incoming water hardness. Ideal for water intended for heating or nebulisation and for domestic and professional applications.

Accessori da avere assolutamente

Compatible with

Registered users only

Description
Data sheet

Swan 4MF-R Bayonet Filter for Limescale Reduction

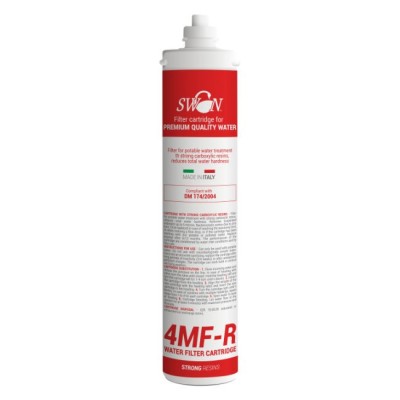

The Swan 4MF-R is a bayonet filter cartridge designed to reduce total water hardness and prevent limescale formation in drinking water.

The Swan 4MF-R is the Swan-branded equivalent of the Water Pro ZS11 and uses strong gel-type cation exchange resins that operate through an ion exchange process.

Unlike activated carbon filters, the Swan 4MF-R is primarily designed to address water hardness, helping to limit limescale precipitation and deposits inside appliances and water treatment systems.

It is particularly suitable for applications where water is heated or nebulised, where limescale can affect equipment efficiency and component life over time.

Cation Exchange Resins for Water Hardness Reduction

The Swan 4MF-R uses strong gel-type cation exchange resins to treat total water hardness through ion exchange.

Temporary hardness is mainly associated with calcium and magnesium bicarbonates, while total hardness also includes permanent salts. The ion exchange process allows the filter to address total hardness and helps reduce limescale formation.

The treatment does not alter the pH of the water.

Reducing water hardness also helps protect heating elements, nozzles, components and appliances from limescale deposits.

Capacity from 185 to 530 Litres

The Swan 4MF-R capacity depends directly on the hardness of the incoming water.

The capacity can range from approximately 185 to 530 litres: harder water results in lower filter capacity, while softer water allows a higher capacity.

For this reason, a single universal capacity value cannot be specified. Cartridge replacement should be assessed according to the quality of the treated water and the actual operating conditions.

Flow Rate of 1.15 Litres per Minute

The Swan 4MF-R provides a nominal flow rate of 1.15 litres/min, higher than the Swan 2MF-R model.

This makes it particularly suitable for applications requiring a greater supply of treated water while maintaining a compact bayonet cartridge format.

Ideal for Coffee Machines and Heated Water

The Swan 4MF-R is particularly suitable for systems where water is heated or nebulised.

Reducing water hardness helps limit limescale formation inside appliances and can improve the characteristics of hot beverages, such as coffee and tea.

It is therefore suitable for:

coffee machines
beverage preparation equipment
systems using heated water
appliances with nozzles or nebulisation systems
water treatment systems
domestic applications
bars, restaurants and Ho.Re.Ca. businesses

Bayonet Filter

The Swan 4MF-R features a bayonet connection, allowing quick installation and cartridge replacement on compatible systems.

Before purchasing, it is recommended to check the compatibility of the existing filter head and water treatment system.

Swan 4MF-R and Water Pro ZS11

The Swan 4MF-R is the Swan-branded equivalent of the Water Pro ZS11.

The model uses strong gel-type cation exchange resins to reduce total water hardness. The Water Pro ZS11 has a flow rate of 1.15 litres/min and a capacity ranging from 185 to 530 litres, depending on incoming water hardness.

Its main function is therefore water hardness control and limescale prevention, making it different from Swan carbon block filters primarily designed to reduce chlorine, odours and other substances.
