Swan 4mf

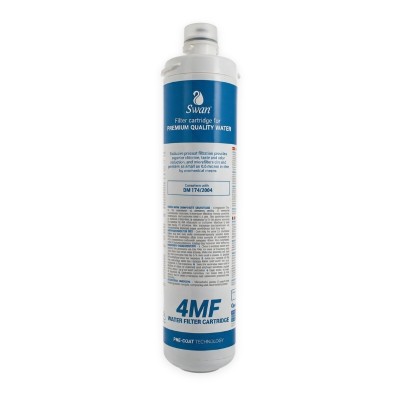

Swan 4MF Bayonet Filter for Drinking Water

The Swan 4MF is a bayonet filter cartridge designed for the microfiltration of drinking water in domestic and professional water treatment systems.

The filter features a combined filtration technology consisting of a carbon block and a 0.5 µm pleated membrane, helping to improve the quality and organoleptic characteristics of treated water.

The Swan 4MF is the non-silver-treated version of the Swan 4MF AG. It shares the same general configuration and filtration capacity, but does not feature silver treatment.

Carbon Block and 0.5 µm Membrane

The Swan 4MF combines a carbon block with a 0.5 µm pleated membrane.

The activated carbon helps reduce chlorine, unpleasant tastes and odours, while the membrane provides mechanical filtration, helping to retain particles, sediments and fine impurities down to 0.5 µm.

Unlike the Swan 4MF AG, the Swan 4MF does not feature silver treatment and therefore does not provide the bacteriostatic action associated with silver ions.

Filtration Capacity up to 12,000 Litres

The Swan 4MF has a filtration capacity of up to 12,000 litres, making it suitable for systems with high water consumption and applications requiring extended cartridge life.

Actual filter capacity may vary depending on the quality of the incoming water, operating conditions, flow rate and system configuration.

Bayonet Filter for Water Treatment Systems

The Swan 4MF features a bayonet connection compatible with Everpure-type filter heads, making it suitable as a replacement cartridge for compatible water filtration systems.

The bayonet connection allows for quick and easy filter replacement when the existing system is designed for this type of cartridge.

Before purchasing, it is recommended to check the compatibility of the existing filter head and water treatment system.

Vertical or Horizontal Installation

The Swan 4MF can be installed in either a vertical or horizontal position, providing greater flexibility when configuring the filtration system.

The installation position must comply with the technical requirements of the system.

Applications

The Swan 4MF is suitable for:

• domestic microfiltration systems
• professional water filtration systems
• water coolers
• water dispensers
• carbonation systems
• drinking water treatment systems
• reverse osmosis systems
• bars, restaurants and Ho.Re.Ca. businesses
• high-consumption commercial applications

The filter is intended for use with potable water and must be installed in a system compatible with its technical specifications.

Swan 4MF or Swan 4MF AG?

The Swan 4MF and Swan 4MF AG share the same general configuration and filtration capacity.

The main difference is the treatment of the filter media:

• Swan 4MF: carbon block + 0.5 µm membrane, without silver treatment.
• Swan 4MF AG: silver-treated carbon block + 0.5 µm membrane, with the bacteriostatic properties associated with silver treatment.

The choice between the two models therefore depends on the requirements of the specific water treatment system and application.

Why Choose the Swan 4MF?

The Swan 4MF is suitable for applications requiring a high-capacity bayonet water filter without silver treatment.

Its main advantages include:

• 12,000-litre filtration capacity
• 0.5 µm filtration
• carbon block + pleated membrane technology
• reduction of chlorine, unpleasant tastes and odours
• filtration of sediments and fine impurities
• flow rate of up to 5 litres/min
• bayonet connection
• compatibility with Everpure-type filter heads
• vertical or horizontal installation
• suitable for domestic and professional applications

The Swan 4MF provides a high-capacity solution for drinking water microfiltration, combining reliable filtration performance, long cartridge life and easy replacement.
